DSL BUS BAR

MAGCO CRANES Insulated conductors are manufactured as per international practices and are designed for Indian conditions. They are finding wide acceptance due to multiple advantages they offer. MAGCO CRANES are very compact, easy to install, colour coded and flexible in installation. They are designed as per international standards of 14 mm, center distance, 4M standard lengths. They are suitable for straight/curbed sections, switching/sectionalizing assemblies etc. The conductors can be cut, bent, assembled at site for all type of installations. One or more feed points at any position possible. Joints are designed for expansion and contraction. All these advantages come at unbelievable economical prices.

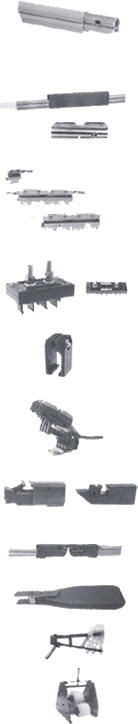

Conductor with PVC Cover Material G.I. / Cu Standard length - 4 meter Cross sectional area - 24 sq. mm. Max. working voltage - 600 V Working temp 80C DC Resistance G.I. 5.4 m Ohms/M DC Resistance Cu 0.715 m Ohms/M Impedance G.I. 5.414 m Ohms/M Impedance Cu 0.75 m Ohms/M Conductor Joint End feed 1 X 25 A with straight funnel Double ended feed for any location 2 X 25 A = 50 A Double ended feed for joint location 2 X 25 A = 50 A Feed Terminal Standard support 4 pole Add on arrangement for multi pole combination 14 mm center distance maintained for all pole combination 4 pole installation dimensions 40 X 65 mm mounting bolt 6 X 20 mm adjustable in horizontal plane Hanger Support Bracket To prevent conductor section from sliding One location per 36 meter length Anchor Clamp Sintered copper graphite shoe spring loaded contact 2 contact shoes per pole swivel 15mm, lift 15mm Spacing 14mm Mounting distance 98mm from conductors 40 A Current Collector For smooth collector transfer in switching applications Straight funnel used as end cap housing end feed Transfer Guide For sectionalizing circuits Feed clip can be mounted on either side Isolating Section For joint clip assembly For sliding joint cover over joint clip Assembly Tool Required for preparing conductor ends at site Factory made lengths available Slot Tool Required for bending conductor sections at site Factory made lengths available Bending Tool Required for bending conductor sections at site Factory made curved sections available

CONDUCTORS G.I. Conductor S35 rated 35A Copper Conductor S95 rated 95A Factory made curved sections available. Possible to make curved sections at site Tools available. Curved sections min. radius - 400 mm MOUNTING SUPPORTS Conductor is designed for international practice of 14 mm entre distance. Basic hanger clamp bracket is 4 pole add-on arrangements for multi-pole requirements. INSTALLATION Very compact, easy to install, horizontal / vertical recess / edge etc. possible. Suitable for indoor use only. CONDUCTOR JOINT Mechanically and electrically strong but joint designed for expansion and contraction of conductor. FEED TERMINALS Power feed at any position possible end / mid rail / joint feed clips available multi feeds also possible. ADVANTAGES Very compact Fully Insulated Finger Safe Accident Free No Sparking Colour Coded Multi Pole Arrangement No Periodic Maintenace APPLICATIONS Straight / Curved / Monorail Hoist Switching Arrangements Sectionalising Zones Transfer Cars Motorized Monorails EOT Crane C.T. Applications Lighting Speed Conveyors
