Radio Remote Controls Push Button
|
MC 301 S
|
Functions : Magnetic Key - Yes Main Power - ON Hoist - Up/Down 1 step Cross Travel - Right/Left 1 step Long Travel - Forward/Reverse 1 step Hooter - Yes Battery Check LED - Yes Emergency Stop - Yes ‘START’ push button is used to put the mainline ON. Once the mainline is ON this button is used for hooter function. |
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
MC 301
|
Functions : Magnetic Key - Yes Main Power - ON Hoist - Up/Down 1 step Cross Travel - Right/Left 1 step Long Travel - Forward/Reverse 1 step Hooter - Yes Battery Check LED - Yes Emergency Stop - Yes ‘START’ push button is used to put the mainline ON. Once the mainline is ON this button is used for hooter function. |
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
MC 302
|
Functions : Magnetic Key - Yes Main Power - ON Main Hoist - Up/Down 2 steps Cross Travel - Right/Left 2 steps Long Travel - Forward/Reverse 2 steps Hooter - Yes Battery Check LED - Yes Emergency Stop - Yes For master controlled cabin operated cranes Model MC-302 with 2- step pushbutton can be used to achieve slow speed on the first step of the pushbutton representing the first or second notch of the master controller and 2nd step of the push button can be used to achieve full speed representing the final notch of the master controller. In other words speed control to the extent of two speeds can be achieved through hand held push button type transmitter. ‘START’ push button is used to put the mainline ON. Once the mainline is ON this button is used for hooter function. |
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
MC 305
|
Functions : Magnetic Key - Yes Main Power - ON Hoist - Up/Down 5 steps Cross Travel - Right/Left 5 steps Long Travel - Forward/Reverse 5 steps Hooter - Yes Battery Check LED - Yes Emergency Stop - Yes 1st speed step is achieved by pressing motion/direction button and 2nd or 3rd or 4th or 5th speed steps by pressing 2 or 3 or 4 or 5 while keeping pressed 1. Additional Functions : Apart from the above functions it is possible to achieve other functions by programming the system such as micro speed in all 3 motions, underbridge lights etc. as explained below: By default the function buttons for Hoist, Cross Travel & Long Travel namely UP, DOWN, EAST, WEST, NORTH & SOUTH shall function as creep speed. Now on pressing buttons denoted as UP & DOWN simultaneously the respective function button will operate as main speed. When this operation is repeated i.e. pressing of UP & DOWN buttons simultaneously again the respective function buttons will revert to creep speed. Underbridge lights can be switched ON by pressing buttons denoted as EAST & WEST simultaneously. When this operation is repeated the lights will be switched OFF. START’ push button is used to put the mainline ON. Once the mainline is ON this button is used for hooter function. |
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
MC 402
|
Functions :
|
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
MC 401
|
Functions : Magnetic Key - Yes Main Power - On Main Hoist - Up/Down 1 step Aux. Hoist - Up/Down 1 step Cross Travel - Right/Left 1 step Long Travel - Forward/Reverse 1 step Micro Speed - 1 step in any one motion Hooter - Yes Underbridge Light - Yes Battery Check LED - Yes Emergency Stop - Yes Additional Functions : Apart from the above functions it is possible to achieve other functions by programming the system such as micro speed in all 4 motions, underbridge lights etc. as explained below: By default the function buttons for Hoist, Aux. Hoist, Cross Travel & Long Travel namely UP, DOWN, AUX. UP, AUX. DOWN, EAST, WEST, NORTH & SOUTH shall function as creep speed. Now on pressing buttons denoted as UP & DOWN simultaneously the respective function buttons will operate as main speed. When this operation is repeated i.e. pressing of UP & DOWN buttons simultaneously again the respective function buttons will revert to creep speed. Underbridge lights can be switched ON by pressing buttons denoted as EAST & WEST simultaneously. When this operation is repeated the lights will be switched OFF. ‘START’ push button is used to put the mainline ON. Once the mainline is ON this button is used for hooter function. |
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
MC 403
|
Functions : Magnetic Key - Yes Main Power - On Main Hoist - Up/Down 3 steps Aux. Hoist - Up/Down 3 steps Cross Travel - Right/Left 3 steps Long Travel - Forward/Reverse 3 steps Hooter - Yes Emergency Stop - Yes 1st speed step is achieved by pressing motion/direction button and 2nd or 3rd speed steps by pressing 2 or 3 while keeping pressed 1. Apart from the above functions it is possible to achieve other functions by programming the system such as micro speed in all 4 motions, underbridge lights etc. as explained below: By default the function buttons for Hoist, Aux. Hoist, Cross Travel & Long Travel namely UP, DOWN, AUX. UP, AUX. DOWN, EAST, WEST, NORTH & SOUTH shall function as creep speed. Now on pressing buttons denoted as UP & DOWN simultaneously the respective function buttons will operate as main speed. When this operation is repeated i.e. pressing of UP & DOWN buttons simultaneously again the respective function buttons will revert to creep speed. Underbridge lights can be switched ON by pressing buttons denoted as EAST & WEST simultaneously. When this operation is repeated the lights will be switched OFF. ‘START’ push button is used to put the mainline ON. Once the mainline is ON this button is used for hooter function. |
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
MC 305 J
|
Functions : Key switch - Yes Main Power - On Main Hoist - Up/Down 5 steps Cross Travel - Right/Left 5 steps Long Travel - Forward/Reverse 5 steps Hooter - Yes Underbridge Lights - Yes Battery Check LED - Yes Emergency Stop - Yes MC-305J can accommodate other functions also such as micro speeds tong/magnet etc. |
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
MC 405 J
|
Functions : Key switch - Yes Main Power - On Main Hoist - Up/Down 5 steps Aux. Hoist - Up/Down 5 steps Cross Travel - Right/Left 5 steps Long Travel - Forward/Reverse 5 steps Hooter - Yes Underbridge Lights - Yes Battery Check LED - Yes Emergency Stop - Yes MC-405J can accommodate other functions also such as micro speeds, tong/magnet etc. |
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
MC 405 DJ1
|
Functions : Key switch - Yes Main Power - On Main Hoist - Up/Down 5 steps through dual joystick Aux. Hoist - Up/Down 5 steps Cross Travel - Right/Left 5 steps through dual joystick Long Travel - Forward/Reverse 5 steps Hooter - Yes Underbridge Lights - Yes Emergency Stop - Yes Main Hoist & Aux. Hoist can be operated through a dual joystick whereas Cross Travel & Long Travel operations can be clubbed through another dual joystick. MC-405DJ1 can accommodate other functions also such as microspeeds, tong/magnet etc. |
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
MC 403 J / MC 404 J
|
Functions :
|
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
MC 304 J
|
Functions : Keyswitch - Yes Main Power - On Main Hoist - Up/Down 4 steps Cross Travel - Right/Left 4 steps Long Travel - Forward/Reverse 4 steps Hooter - Yes Underbridge Lights - Yes Battery Check LED - Yes Emergency Stop - Yes |
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
MC 405 DJ 1
|
Functions : Key switch - Yes Main Power - On Main Hoist - Up/Down 5 steps through dual joystick Aux. Hoist - Up/Down 5 steps Cross Travel - Right/Left 5 steps through dual joystick Long Travel - Forward/Reverse 5 steps Hooter - Yes Underbridge Lights - Yes Emergency Stop - Yes Main Hoist & Aux. Hoist can be operated through a dual joystick whereas Cross Travel & Long Travel operations can be clubbed through another dual joystick. MC-405DJ1 can accommodate other functions also such as microspeeds, tong/magnet etc. |
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||

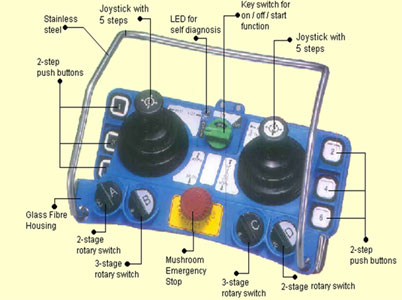

| MC 405 DJ 2 |
 |
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
Commander 1
|
Functions : Magnetic Key - Yes Main Power Turn clockwise and release - On Turn anticlockwise - Off Main Hoist - Up/Down 3 steps Aux. Hoist - Up/Down 3 steps Cross Travel - Right/Left 3 steps Long Travel - Forward/Reverse 3 steps Hooter - Yes Emergency Stop - Yes |
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
Commander 2
|
Functions : Magnetic Key - Yes Main Power - On Turn clockwise and release - On Turn anticlockwise - Off Main Hoist - Up/Down Cross Travel - East/West Long Travel - North/South Hooter - Yes Battery Check LED - Yes Emergency Stop - Yes |
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
Commander 3
|
Functions : Magnetic Key - Yes Main Power - On Turn clockwise and release - On Turn anticlockwise - Off Main Hoist - Up/Down Cross Travel - East/West Battery Check LED - Yes Emergency Stop - Yes |
||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
Commander 4
|
Functions : Magnetic Key - Yes Main Power - On Turn clockwise and release - On Turn anticlockwise - Off Main Hoist - Up/Down Battery Check LED - Yes Emergency Stop - Yes |
||||||||||||||||||||||||||||||||||||||||||||
